B. P. Lab Solution

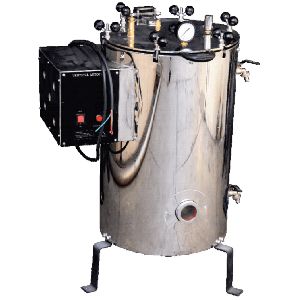

Double Wall Autoclave Vertical

Business Type Manufacturer, Exporter, Supplier
Model BPL-12
Material Inner S.S., Outer M.S.

Preferred Buyer From

Location India, Bangladesh, Nepal, Sri Lanka

It used for Sterilizations under Saturated steam pressure at any selected point between 10 to 20 p.s.i. (adjustable). These are double-walled units with the inner chamber (Boiler) made of 18 S.W.G. stainless steel fitted with a neoprene rubber gasket. All autoclaves are fitted with standard accessories such as pressure gauge, steam release cock, spring-loaded safety valve, deadweight valve, water drain valve, Water level arrangement and heating element. Supplied complete with cord and plug to work on 220/230 volts A.C. Supply.



  • Pressure control switch.
  • Automatic low-water level cut off-device.
  • Digital temp. Controller & Digital Timer combined
  • LCD Digital temp. Controller & Timer &  low-water cut off-device combined
  • Programming with PID 4 program keys , 16*2 line LCD/LED Temp. display, One Start/Stop key, pt100 wire sensor automatic soak. Purge ,exhaust setting auto low water cut off high alarm set can be fitted.
  • Digital Pressure Indicator Displayed Directly on the control panel
  • Pedal lifting device
  • Radial Locking System

Yes! I am interested

Technical Specification

Chamber size in mm & Dia x Depth Load Capacity
250 x 450 mm 2 KW 22 ltrs.
300 x 500 mm 2 KW 40 ltrs.
350 x 550 mm 3 KW  50 ltrs.
400 x 600 mm 4 KW  78 ltrs.
450 x 600 mm 4 KW  98 ltrs.
550 x 750 mm 5 KW 152 ltrs.
